Implementation

COMMERCIAL

WebRatio

IFML is currently implemented by WebRatio, an agile toolsuite which provides BPMN, IFML and UML class diagrams modeling, together with model-checking, full code generation, documentation generation, and teamwork features, to create robust and composite enterprise-class mobile Apps and Web applications.

OPENSOURCE

Two opensource implementations are currently available for IFML.

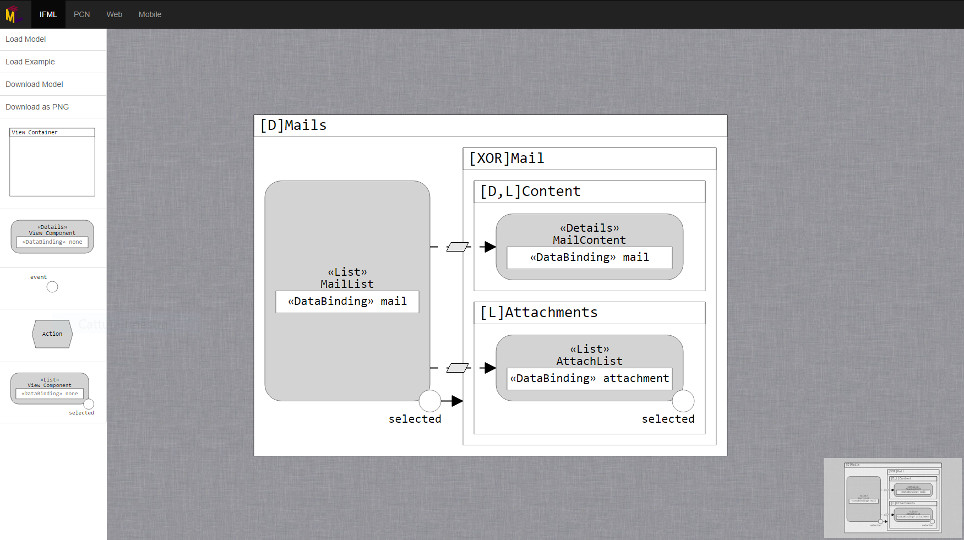

A Web-based editor and generator completely developed in JavaScript and an opensource IFML editor based on Eclipse and the Sirius API. They are both available on GitHub

Both editors you design IFML diagrams according to the standard specification.

The modeling of the IFML diagrams for the UI part can be complemented with (executable) UML diagrams according to fUML specifications combined with Alf scripts for the backend business logic and with UML class diagrams.

This presentation about the Eclipse-based IFML editor has been given at EclipseCon 2015:
